SCOPE OF WORK
This station automates the loading of the seals on the hub of the transmission assembly, replacing the current manual process.
SOLUTION

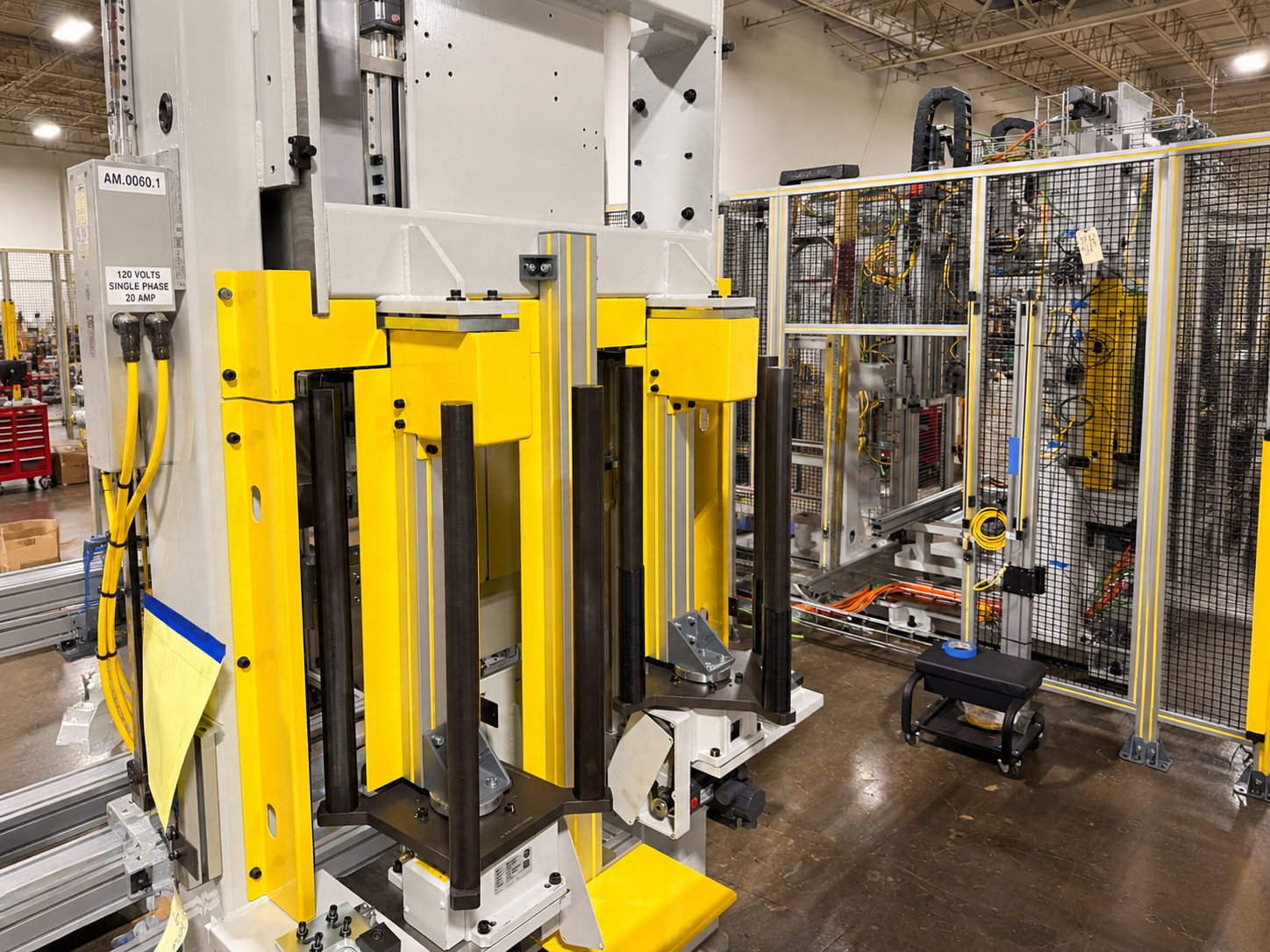

Seal Accumulation Two indexing dials for seal loading and accumulation.
Pallet & Part Locating A lift and locate for the pallet was placed on the main line as well as part locating.
Seal Coin Changer to Clam tooling Vertical lift singulates off accumulation dial, then cross shuttles it into clam tooling to built the array needed on the hub.
Controls Station A HMI, Controls plate with electrical and pneumatic components give operator full controls function.
FEATURES & SPECIFICATION
Two servo indexing dials allow for operator to load enough seals for a generous walk away time.
Servo lift actuator to singulate seals up to the horizontal pneumatic coin changer.
Clam tooling to built the array of seals for the hub.
Lift-and-locate the pallet off the main line for precise locating.

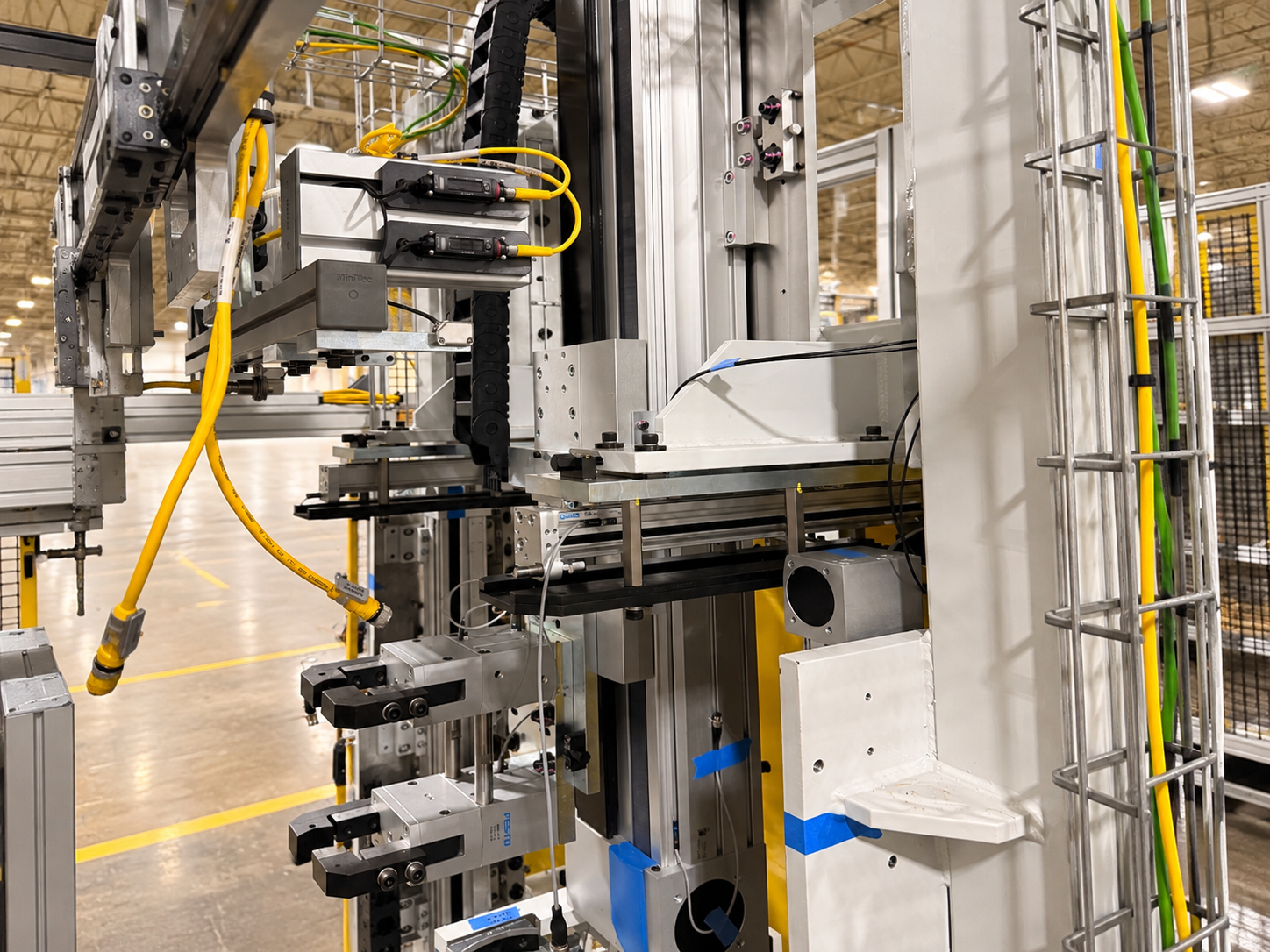

Gripper to locate the part. And a butterfly gripper to place the cone over customer part.

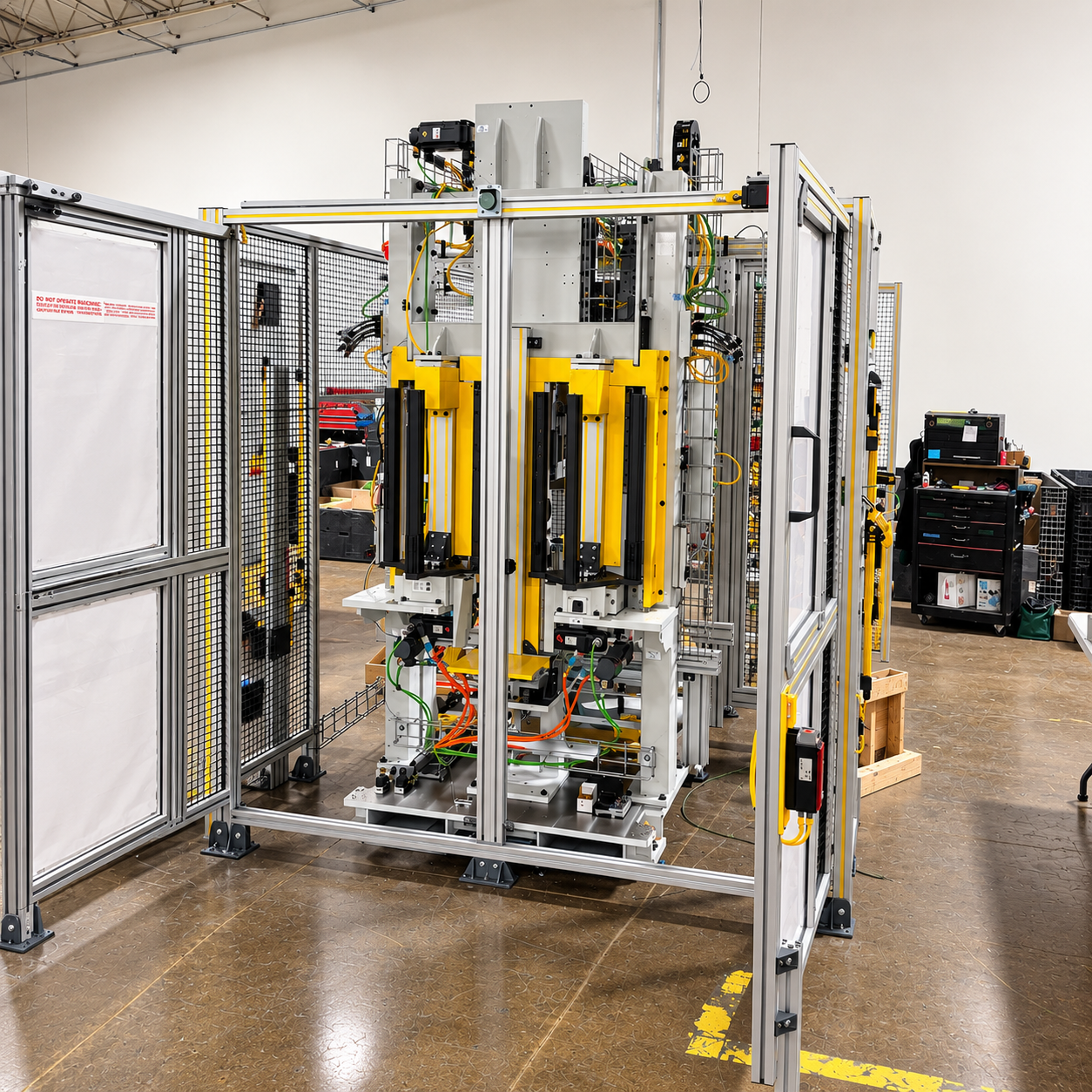

Integrate guarding with interlocked doors. As well as operator part loading doors, with fully guarded sheet metal.
Station controls integrated with Siemens HMI for full operator control.
